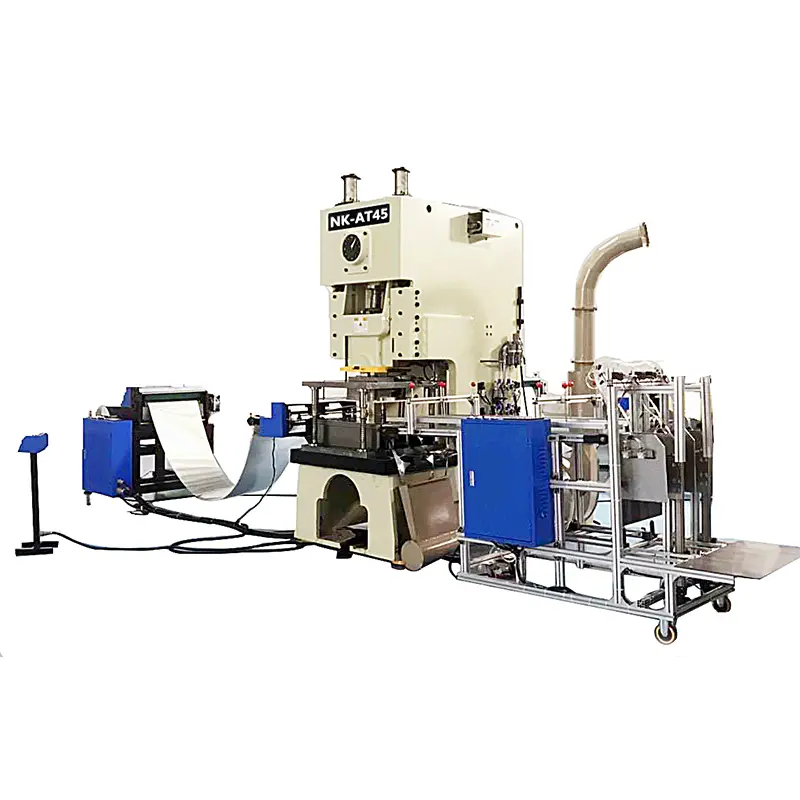

NK-AT45 Fully Automatic Aluminum Foil Container Making Machine
This open back press with Fixed Bed is a universal equipment which is suitable for shearing punching, blanking, bending and shallow drawing. It is widely applicable for such field as watch, toy, dishware, telecommunication, instrument, motor, electric appliance, tractor, auto, daily hardware, radio element, etc.
Technical Data:
| Rated pressure | Punch time | Stroke | Maximum die set height | Die set height adjustment | Distance from Slider’s center to body | |
|---|---|---|---|---|---|---|
| 80kN | 20-70 times/minute | 300mm | 520mm | 80mm | 510mm | |
| work table size | Board hole size of work table | thickness of work table | Slider’s size | Machine power | Net weight | size |
| 680×680mm | 130mm | 420×620mm | 13kw | 13000Kg | 2500×1600×3600mm（L×W×H） | |

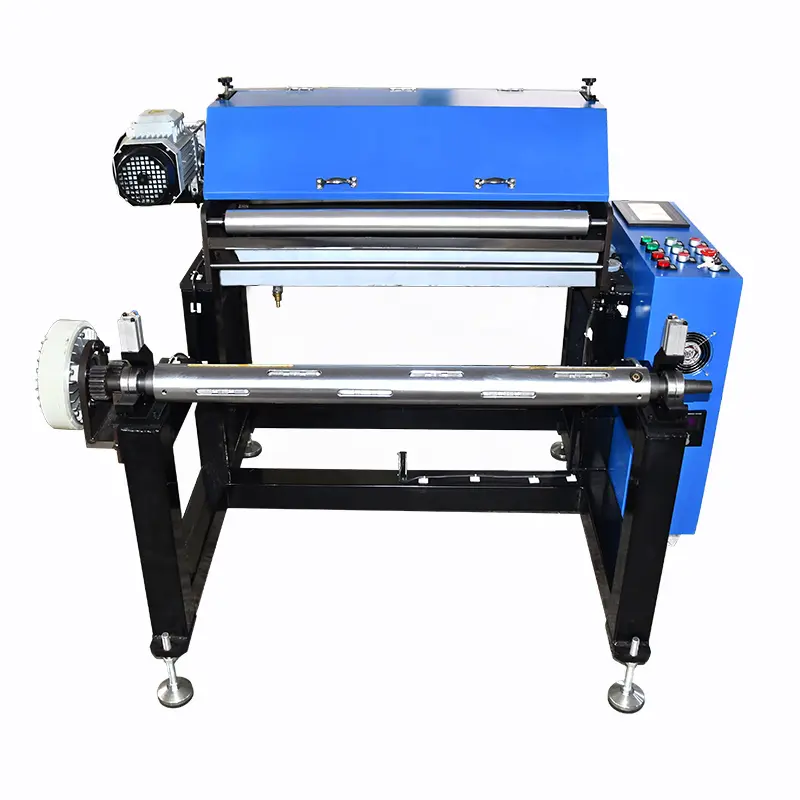

NK-F 800 Hydraulic Pressure Feeder
Hydraulic pressure feeder is an important part of production line, is used for punch raw material and set length and feeding automatically, also have uprush and press gas, disinfection automatically, wash products and embossing can adjust pressure’s speed, inching, continue, air blast angle and auto-lubrication.
Feeder Parameters:
| Model Specification | NK-F800 |
|---|---|
| Lifting stroke | 250mm |
| front and rear stroke | 250mm |
| Max roll diameter | ø1000mm |
| Max width of the material | 800mm |
| Feeding length | 0.1～9999mm |
| Feeding accuracy | ±0.1mm |
| Feeding speed | 1-60m/min |
| Power | 2.5kw |
| Max rack weight | 2000KG |
| Feed roller diameter | ø100 |
| Feed roller material | Polyurethane、45# steel |
| Tractio roller diametern | ø102 |
| Tractio roller material | Polyurethane、45# steel |
| Rack Material | Q235 |
| Material of guide roller | Aluminum |
| Oil tank material | Stainless steel |
| Total Weight | 600kg |
| Size（L*H*W） | 1550mm*1300mm*1100mm |

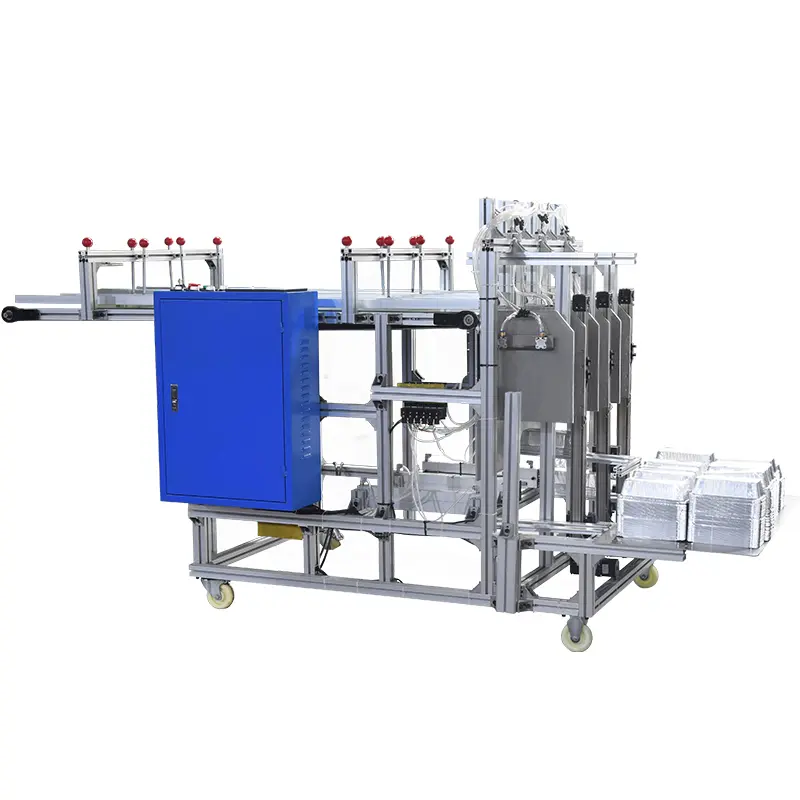

NK-AS800-3 Automatic stacker for pressure al-foil container
The NK-AS800-3 Automatic Stacker is a machine that helps collect pressure aluminum foil containers. It has a conveyor belt that can be adjusted to run at different speeds, and it can automatically count the containers as they stack. The stacker also has a safety feature that prevents collisions between the containers. It can be used either as part of a larger production line or on its own. The stacker is controlled by a touch screen and a PLC computer, and it uses a stepper motor and ball screw to precisely move the lifting table. The stacking table uses PLC control to ensure that the containers are stacked in the correct quantity, and an air-operated control table ensures smooth operation.
Technical Data:
| Conveyor width | Collector belt height | Min size of container | Min size of container | |
|---|---|---|---|---|
| one way | two way | |||
| 550mm | 920+/-25mm | 100×100mm | 500×300mm | 215×300mm |
| Max stacking height | air consume | Machine power | Net weight | Size |
| 420mm | 0.2m3/min | 3KW | Table Data100kg | 2800×780×1500mm (L×W×H) |
Stacker Parameters:
| Model Specification | NK-AS800 |
|---|---|
| Min. container dimension | 100mm*100mm*120mm |
| Max. container dimension | 300mm*215mm*120mm |
| Collector belt height | 1050～1300mm |
| Belt width | 800mm |
| Max. height of stacker | 420mm |
| Power | 1-60m/min |
| Power | 2KW |
| Operating voltage | 380V |
| Working pressure | 0.6～0.8MPa |
| Maximum stacking speed | 180 P /MIN |
| Frame | Aluminum profile |
| Weight | 400kg |
| Size（LL*W*H） | 2900mm*1300mm*1300mm |

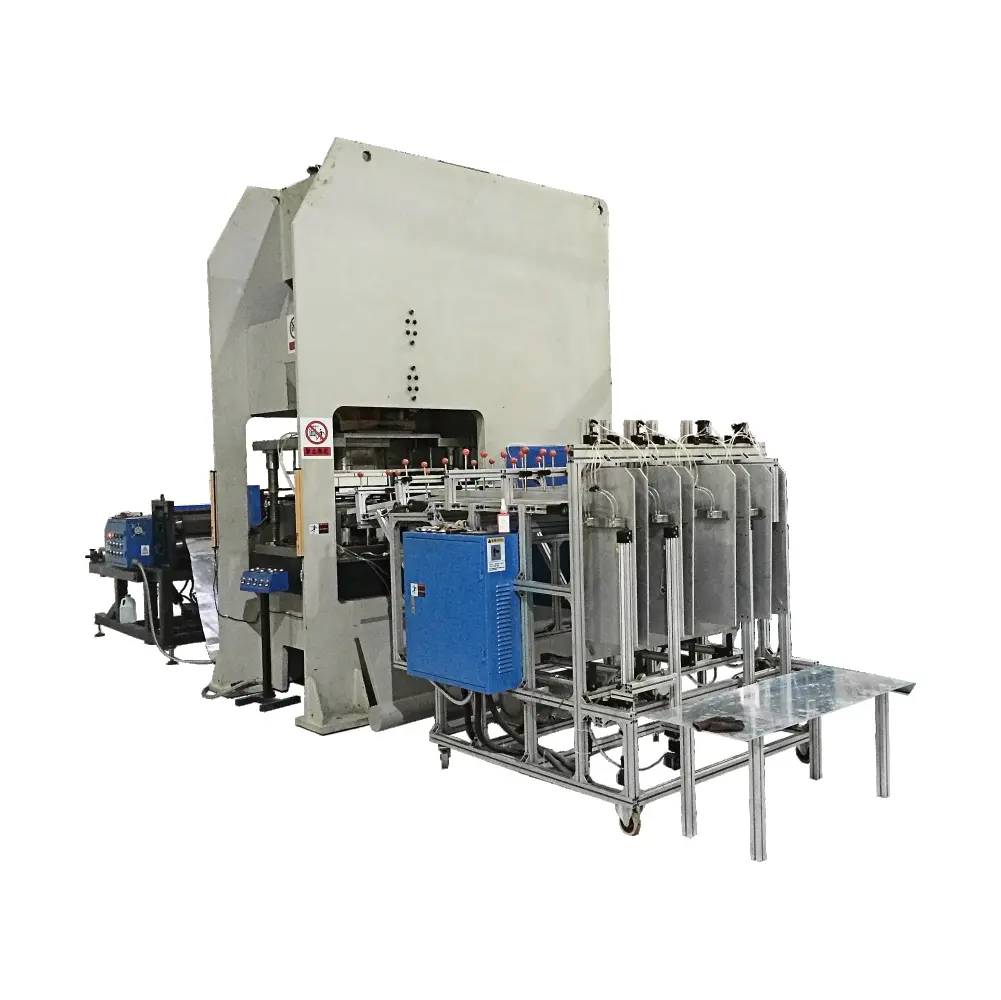

NK-AT80 Fully Automatic Aluminum Foil Container Production Line
This Aluminum Foil Container Production Machine is advanced because it automates the entire process. It can handle oiling the foil, feeding the material, forming the boxes, and stacking the finished product – all without needing a person to directly handle the material. The machine can also use a wider range of foil widths and efficiently positions the material in the mold to minimize waste. Finally, the high-quality construction and precise manufacturing techniques ensure that the machine produces top-quality boxes.
Production Operation Requirement
| Power supply | The three phases voltage | The single phase voltage | Frequency range | Frequency range | Pressure |
|---|---|---|---|---|---|
| AC three-phase five-wire including neutral wire and ground wire | 380v (or 220v) | 220v | 50/60Hz | Below 50℃ | Consumption = 1m3/min, 0.6-1MPa |

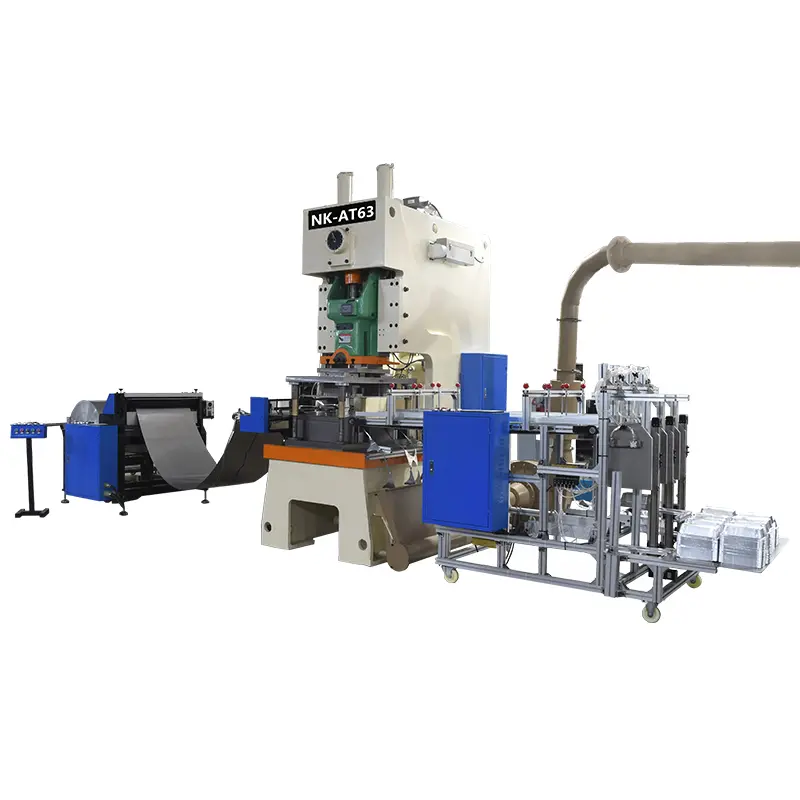

NK-AT63 Fully Automatic Lunch Box Production Line
This open back press with Fixed Bed is a universal equipment which is suitable for shearing punching, blanking, bending and shallow drawing. It is widely applicable for such field as watch, toy, dishware, telecommunication, instrument, motor, electric appliance, tractor, auto, daily hardware, radio element, etc. Pressure is an important machine of production line, use for pressure al-foil container.
Technical Data:
| Rated pressure | Punch time | Stroke | Maximum die set height | Die set height adjustment | Distance from Slider’s center to body | |
|---|---|---|---|---|---|---|
| 80kN | 20-70 times/minute | 300mm | 520mm | 80mm | 510mm | |
| work table size | Board hole size of work table | thickness of work table | Slider’s size | Machine power | Net weight | size |
| 680×680mm | 130mm | 420×620mm | 13kw | 13000Kg | 2500×1600×3600mm（L×W×H） | |

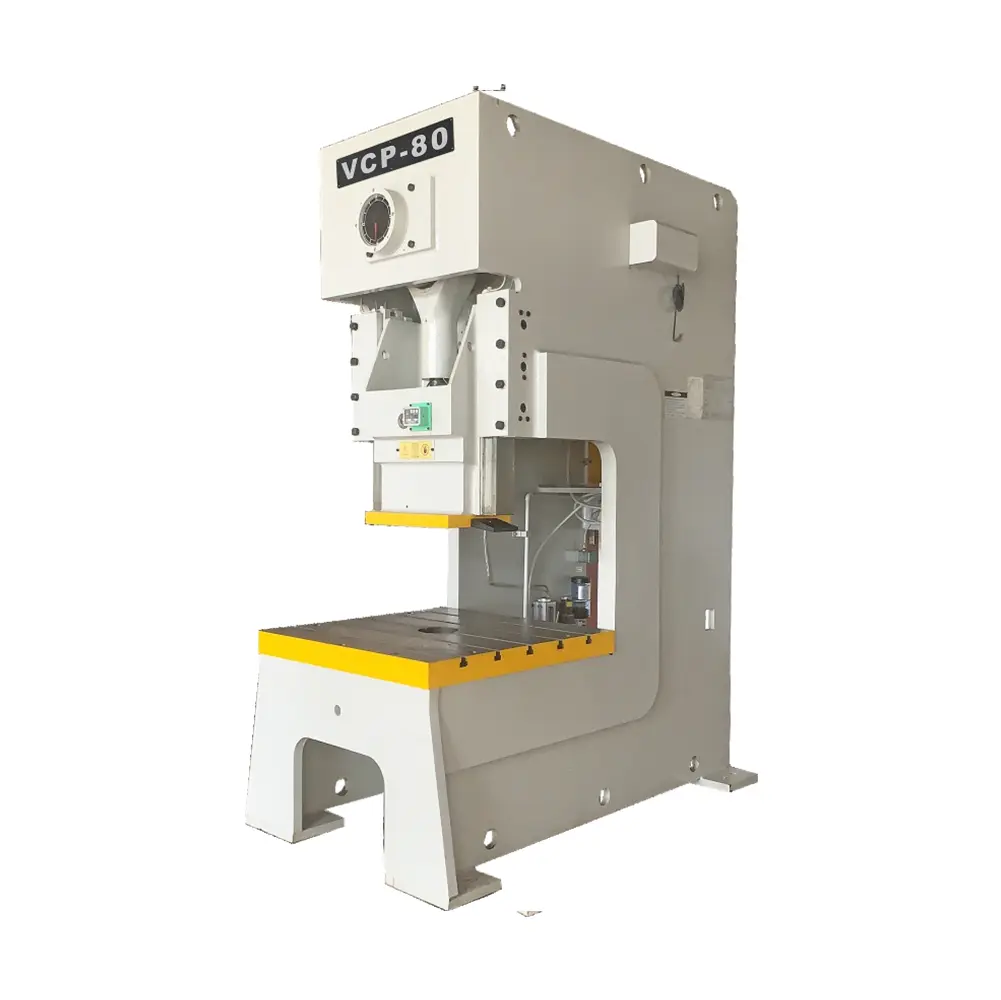

NK-P80 Slide Stroke Punching Machine
The NK-P80 Slide Stroke Punching Machine is a high-performance machine used in food and beverage production lines, particularly for forming aluminum foil containers. It has energy-saving frequency control, a quiet and durable air operated clutch, and a low-noise air pressure balance cylinder. Additionally, a high-speed signal pickup coder simplifies control, while an auto-photoelectric protection system enhances safety. The machine also features a multipass air storage system for efficient air use, an auto-lubrication system, and a motor-driven die set height adjustment mechanism.
Slide Stroke (mm): 300mm
Power Source: Mechanical
Brand Name: CSD
Voltage: 380
Dimension(L*W*H): 2500*1600*3600MM
Motor Power (kW): 13KW
Model Number: CSD-AT80
Weight (T): 14
Applicable Industries: Food & Beverage Factory, Food Shop, Food & Beverage Shops
Core Components: Motor, Pressure vessel
Color: Silver
Technical Data:
| Rated pressure | Punch time | Stroke | Maximum die set height | Die set height adjustment | Distance from Slider’s center to body | |
|---|---|---|---|---|---|---|
| 80kN | 20-70 times/minute | 300mm | 520mm | 80mm | 510mm | |
| work table size | Board hole size of work table | thickness of work table | Slider’s size | Machine power | Net weight | size |
| 1100×1200mm （L×W） | 680×680mm | 130mm | 420×620mm | 13kw | 13000Kg | 2500×1600×3600mm（L×W×H） |

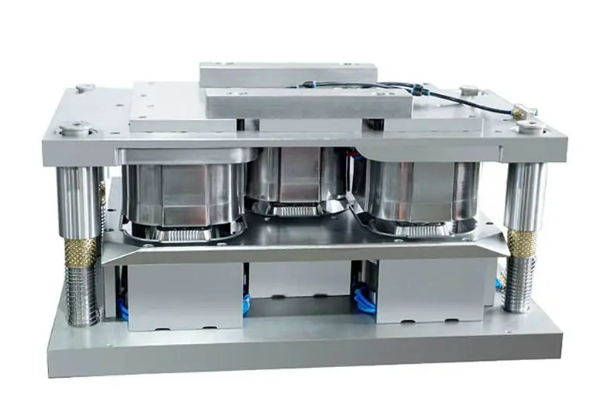

Al-foil container composite single-pass formong mould
Al-foil container composite single-pass forming moulds are engineered for high-speed production with features like durable imported or national alloy steel construction for fast operation, optimized designs with well-placed air channels and lubrication systems for smooth forming, extended lifespans thanks to high frequency or spread on carbon processing, and the ability to create moulds in various shapes through a special processing method.
Shaping Mode: Punching Mold
Product Material: Metal
Product: Vehicle Mould
Automatic Grade: Semi-automatic
Voltage: 380
Machinery Capacity: 200/min
Brand Name: csd
Material: Steel
Color: Silver
Technical Data When Customize Mould:
| Capacity | Dimension of working table | Dimension of slider’s undersurface | Dimension of die shank |
|---|---|---|---|
| Stroke of slider | Throat depth | Closed height | Adjustment of closed height |

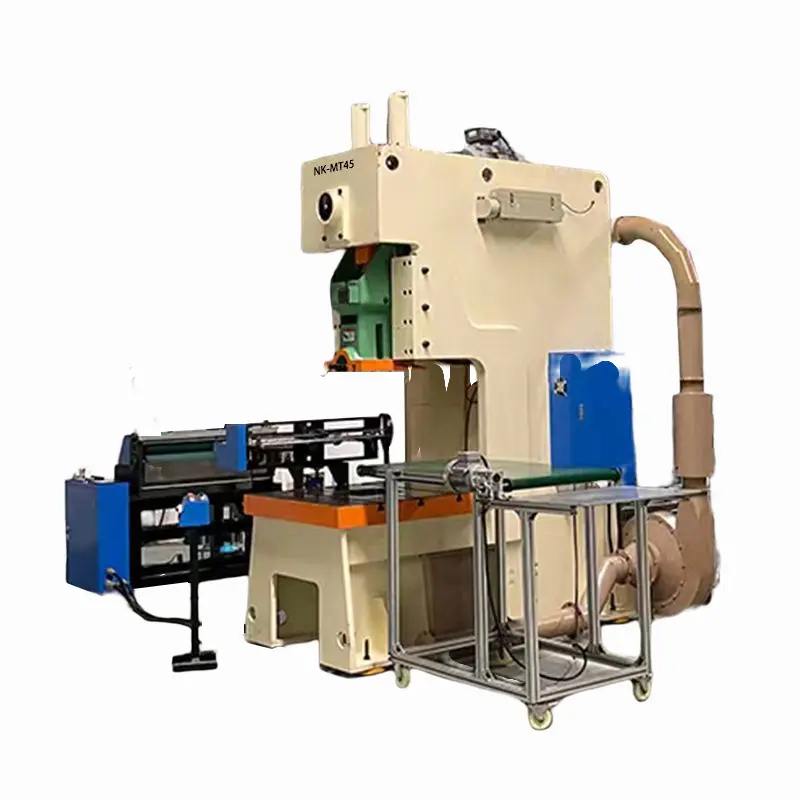

NK-MT45 Semi-Automatic Production Line
NK-MT45 Aluminum Foil Container Production Line is composed of feeders, precision presses, and molds. (Mold can be selected according to needs). The NK-MT45 semi-automatic production line has a reliable programmable controller system for centralized control of gas, electricity, and various parameters like feeding length and production speed. Featuring automation in feeding, stamping, and product ejection, the line utilizes a high-precision press with a steel plate welded body for rigidity. This press incorporates frequency conversion speed regulation, a dry friction clutch, and a robust overload safety device, ensuring both precision and reliability. Additionally, the step-by-step controlled feeding system allows for accurate and error-free feeding lengths set within a range of 20mm to 999mm

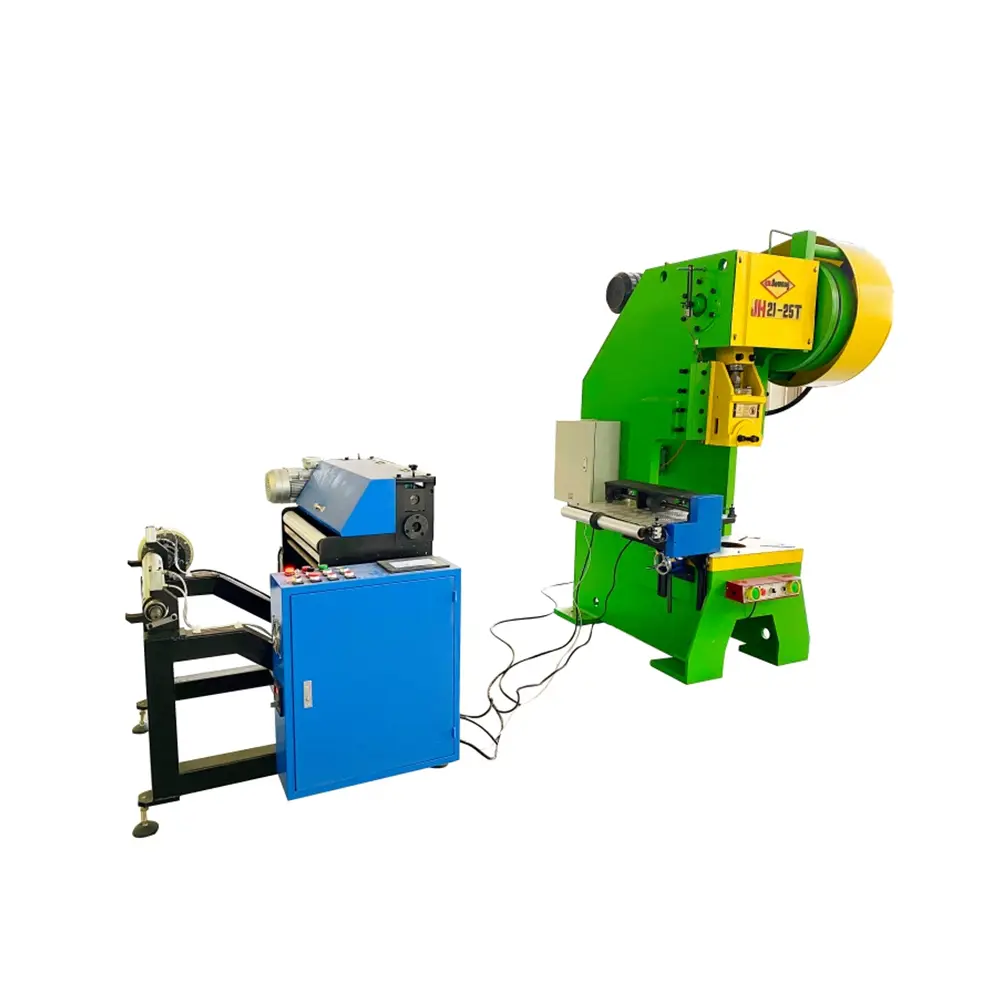

NK-P25 Power 4kw Punch Pressure
The NK-P25 is a 4kw punch press specifically designed for high-performance aluminum foil container production. It boasts several features to optimize efficiency and safety: a high-performance frequency control system for energy saving, a low-noise and durable air operated clutch, a high abrasion-resistant air pressure balance cylinder for quiet operation, a high-speed signal pickup coder for easier control, an automatic photoelectric protection system for enhanced safety, a multipass air storage system for reasonable air consumption control, and even an automatic lubrication system.
Brand Name: CSD
Model Number: NK-M25T
Dimension(L*W*H): 1650*1350*2800MM
Weight: 5000 KG
Automatic Grade: Semi-automatic
Voltage: 380
Power: 4kw
Machinery Capacity: 20-100TIME/MIN
Key Machines: Packaging Forming Machines, Coating Machines, Blister Packaging Machines
Packaging Material: Metal
Color: Silver
Technical Data:
| Rated pressure | Punch time | Stroke | Maximum die set height | Die set height adjustment | Distance from Slider’s center to body | work table size |
|---|---|---|---|---|---|---|
| 250kN | 20-120 times/minute | 200mm | 490mm | 80mm | 340mm | 1100×660mm （L×W） |
| Board hole size of work table | thickness of work table | Slider’s size | Mounting hole of slider | Machine power | Net weight | size |
| 300×300mm | 50mm | 220×400mm | 145×320mm φ18 | 7kw | 4600Kg | 1650×1350×2800mm （L×W×H） |
