Printed Circuit Board Recycling Machine
Printed Circuit Board Recycling Machine or PCB Recycling Machine is suitable for recycling circuit board, copper cladding plate, PCB board, mobile phone board, etc., to recover the nonferrous metal copper, gold, silver, palladium, platinum and rhodium in the waste circuit board. The whole PCB recycling machine separates the copper and resin in the circuit board through physical crushing. At the same time, the e waste PCB recycling machine is also equipped with pulse dust removal equipment to solve the dust generated in the production process.
Application: It is used for the separation of metals and nonmetals in waste circuit boards, copper clad laminates, circuit boards and leftovers and to recover mixed metals and resin powders.
Capacity: 300-1000 Kg/h
Raw Materials: Computer board, Mobile Phone board, TV board, CCL (Copper-Clad Plate), PCB leftover material, etc.
Final Products: Mixed metal powder, Resin fiber powder and copper particles
Working Voltage: 380V, 415V ,440V or can be customized.
Technical Parameter:
| Model | Power（kw） | Size（mm） | Output（kg/h） |
|---|---|---|---|
| PCB-300 | 120 | 8000*7000*4600 | 200-300 |
| PCB-500 | 160 | 9000*8000*4600 | 300-500 |
| PCB-1000 | 300 | 1800*1200*4800 | 800-1000 |
Circuit Board Disassembly Machine
Automatic circuit board (PCB) disassembly machine is composed of circuit board disassembly machine and waste gas treatment equipment, mainly used to disassemble electronic components from the waste circuit board. These components contain various metals, including precious ones like gold, silver, and palladium, as well as toxic substances. Some components can be sorted and sold directly. The disassembled motherboard is also easier to break and separate copper, which greatly reduces the work of the crushing and sorting section and improves the recycling rate of precious metals.
Application: PCB Component Dismantling Machine is used to remove electronic components on different PCB boards. Through heating, the Tin on PCB boards is melting then PCB mother board and electronic components are separated. Through rolling friction, they are separated from each other thoroughly.
Capacity: 200-500 Kg/h
Raw Materials: Computer board, Phone board, TV board, etc.
Final Products: Mother Boards, Electronic components
Technical Parameter:
| Model | Capacity (Kg/H) | Dimensions(mm) | Total Power (Kw) |
|---|---|---|---|
| CJJ-300 | 200-300 | 1850*1500*1600 | 5 |
| CJJ-500 | 400-500 | 2300*1800*1800 | 7.7 |
Precious Metal Recovery Refining Machine
PCB Metal recovery refining machines, also known as e-waste recycling machines or PCB recycling machines, are used to extract gold and other precious metals from electronic waste materials, specifically from printed circuit boards (PCBs). Our PCB recycling machines employ various techniques to separate the valuable metals from the rest of the electronic components. The purity of refined precious metal can reach up to 99.99%.
Application: The precious metal recovery refining machine is used to extract precious metals such as gold, silver, palladium and platinum from electronic waste precious metal chip components and anode slime, and the purity of extracted precious metals can reach 99.99%.
Production Capacity:100-300kg/day
Raw Material: Electronic waste (e-waste) like circuit boards, including CPU, RAM, pins, and other computer components contains a lot of precious metals, such as gold (Au), silver (Ag), platinum (Pt), Gallium (Ga), palladium (Pd), tantalum (Ta), tellurium (Te), germanium (Ge) and selenium (Se), etc.
Final Products: crude gold powder
Technical Parameter:
| Model | Capacity (Kg/Day) | Total Power (Kw) | Rate Purity | Purity |
|---|---|---|---|---|
| GJS-100 | 100 | 20 | ≥99% | ≥99% |
| GJS-300 | 300 | 30 | ≥99% | ≥99% |

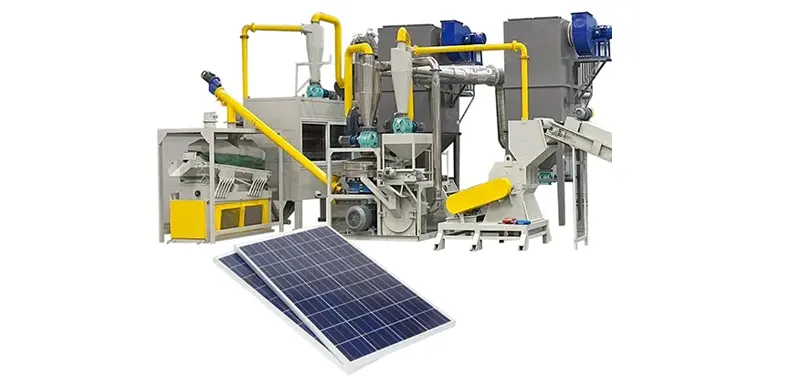

Solar Photovoltaic Panel Recycling Machine
We have developed a large-scale solar photovoltaic panel recycling machine that is non-toxic, high in separation efficiency, low in cost, and easy to handle in terms of process flow, which has important application value and academic significance. The solar PV panel recycling plant extracts silicon powder, copper powder and plastic with high market value through physical crushing and sorting. The main components of PV modules are aluminum frame, glass, cell, EVA film, and backplane.
Among them, the main component of glass is silica, and the secondary components are soda ash, limestone, magnesium oxide, alumina, mirabilite, and carbon; EVA is mainly ethylene-vinyl acetate copolymer; the core components of the battery are mainly monocrystalline silicon and Polysilicon; the main material of the frame is metal aluminum; the back plate is composed of two layers of PVF film and one layer of PET film. More than 95% of these materials can be recycled.
Application: Crushing and grinding machines play a key role in the solar photovoltaic panel recycling process. They crush materials such as silicon cells into a fine powder that facilitates the subsequent metallurgical extraction process
Capacity:300-1000 Kg/h
Raw Materials: Waste Solar PV Panel
Final Products: Glass, Silicon powder, Copper powder, Plastic powder
Technical Parameter:
| Model | Power （kw） | Size（mm） | Output（kg/h） |
|---|---|---|---|
| GFB-500 | 185 | 20000*7000*5000 | 300-500 |
| GFB-1000 | 385 | 25000*25000*6000 | 800-1000 |
Lithium-ion Battery Recycling Plant
Lithium-ion battery recycling machine research mainly focuses on the recovery of high-value anode metals cobalt and lithium. Copper in the negative electrode of waste lithium batteries is an important production raw material that is widely used. Toner attached to it can be used as an additive, such as plastic and rubber. According to the structural characteristics of lithium batteries, a physical separation process is adopted to achieve efficient separation and recovery of waste lithium batteries. The waste lithium-ion battery recycling machine of our company will crush the materials step by step through shredders, crushers and grinders, and separate them by air separation facilities.
Application: Lithium battery recycling plant is used for the disassembly and recycling of soft packaging batteries, mobile phone batteries, surgical batteries, cylindrical batteries, etc.
Capacity: 300-1000kg/h
Copper and aluminum recovery (by weight): ≥ 98%
Positive and negative material recovery (by weight%): ≥ 99%
Iron recovery (by weight): ≥ 99%
Raw Materials: Soft package battery, cellphone battery, shell battery, cylindrical battery, EV lithium battery etc.
Final Products: copper, aluminum, cobalt lithium, graphite powder
The whole set of equipment adopts a closed negative pressure system to reduce dust pollution, and has a pulse dust collection facility collect dust generated during the separation process and subsequent processes.
Technical Parameter:
| Model | Capacity(kg/h) | Power(kw) |
|---|---|---|
| LDC-500 | 400-500 | 130 |
| LDC-1000 | 800-1000 | 280 |
