Baby Diaper Production Machine
Baby Diaper Production Machine designed to automate the process of producing diapers, from cutting the raw materials to assembling the various components, such as the absorbent material, backing material, and elastic waistband, into a finished product that is ready for use. PLC control system, operating on the touch screen, man-machine interface, match with a LED digital display to control the production by pattern digization.
Product size: S: 390*280 M: 450*320 L: 500*320 XL: 525*330
Drive system: 3-Shaft Mechanical Drive, Semi-servo, Full servo can be chosen by customer’s requirement
| Subject | Parameter |
|---|---|
| Overall size(L*W*H) | 24M*4M*3.6M (For reference only) |
| Machine size(L*W*H) | 22m*2.1m*3.3m, based on the product provided by client |
| Design speed | 500pcs/min |
| Stable speed | 400pcs/min |
| Pass percentage | 98% |
| Work efficiency | 85%-90% |
| Power source | 380V,50HZ, (3phase,4lines+ground wire) |
| Machine capacity | about 280KW |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | About 55T |
| Machine color | Customized |
Fully Automatic Servo Adult Diaper Machine Patient Diaper Making Machine
The adult diaper-making machine is specialized equipment used to produce disposable adult diapers. The machine typically includes a range of components, like unwinders, tension controllers, web guides, embossing units, elastic applicators, cutting systems, and stacking devices.
Product size: M: 680*450 L: 800*650 XL: 950*760
Drive system: Timing belt and flat belt are imported products, and all the key parts are imported bearings.
| Subject | Parameter |
|---|---|
| Overall size(L*W*H) | 24M*4M*3.6M (For reference only) |
| Machine size(L*W*H) | 22m*2.1m*3.3m, based on the product provided by client |
| Design speed | 300pcs/min |
| Stable speed | 160pcs/min |
| Pass percentage | 98% |
| Work efficiency | 85%-90% |
| Power source | 380V,50HZ, (3phase,4lines+ground wire) |
| Machine capacity | about 400KW |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | About 95T |
| Machine color | Customized |
Fully Automatic Women Sanitary Napkin Manufacturing Machine
It is an automatic self-service machine that is used for dispensing Sanitary Pads. These Machines are filled with feminine Pads, and with just a press of a button, one can have easy access to sanitary pads.
Drive system: Full servo driven, imported timing belt, key position adopt with the imported bearing.
| Subject | Parameter |
|---|---|
| Stable Working Speed | 300-700pcs/min (By order) |
| Pass Percentage | ≥98% |
| Operating Rate | ≥85% |
| Power Supply | 380V 50Hz |
| Electrical Supply | 380V ±5%, 50Hz Three-phase four-wire + ground wire |
| Power Installed | About 180KW (Not included hot melt glue machine) |
| Supply Pressure | 0.6-0.8Mpa |
| Machine Sizes (L× W× H) | 22.0m× 5.5m× 3.5m(L× W× H) (Only for reference) |
| Main Engine Sizes (L× W× H) | 32m× 9.0 5.0m (L× W× H) (Only for reference) |
| Machine Color | Customized |

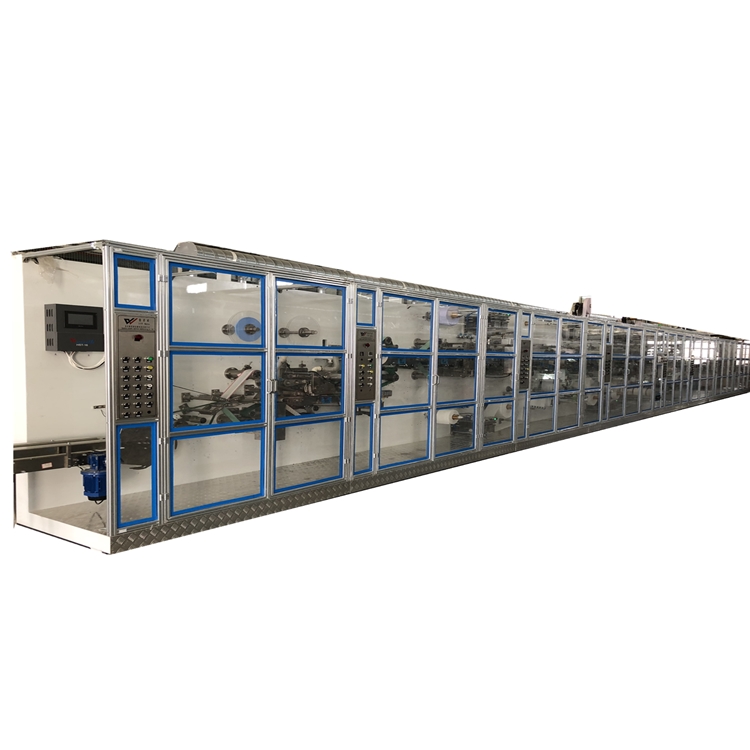

Automatic Panty Liner Production Machine
The purpose of panty liners is to absorb everyday vaginal discharge, unexpected light period flow, light spotting, staining at the beginning and ends of periods, and post-intercourse discharge. Tampons, pads, and menstrual cups can be used with panty liners for extra protection. Panty Liners are a bit similar to sanitary napkins but thinner and can be used on a daily basis to help save your panties from getting bleached from the discharge.
Product size: 155,180,190mm
Optional: Fully automatic packing machine (stacker +bagger) type-semi servo
| Subject | Parameter |
|---|---|
| Overall size(L*W*H) | 23M*3M*3.5M (For reference only) |
| Machine size(L*W*H) | 22m*2.5m*2.5m, based on the product provided by client |
| Design speed | 1400pcs/min |
| Stable speed | 1000-1200pcs/min |
| Pass percentage | 98% |
| Work efficiency | 90% |
| Power source | 380V,50HZ, (3phase,4lines+ground wire) |
| Machine capacity | about 120KW |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | About 40T |
| Machine color | Customized |
Fully Automatic Under Pad Machine
Under pad Making Machine is intended to manufacture under pads, hospital pads, pet pads, hospital mattresses, etc. It allows patient to air-out without wearing any other product. Under pads are with skin friendly material and anti-skid backing.
Product size: 60*60cm,60*90cm, etc.
Optional: Fully automatic packing machine (stacker + bagger), Economical type-semi servo
| Subject | Parameter |
|---|---|
| Overall size(L*W*H) | 30M*6M*4M (For reference only) |
| Machine size(L*W*H) | 28m*7m*3.5m, based on the product provided by client |
| Design speed | 300pcs/min |
| Stable speed | 230pcs/min |
| Pass percentage | 98% |
| Product Weight Deviation | ±5% |
| Power source | 380V,50HZ, (3phase,4lines+ground wire) |
| Machine capacity | about 200KW |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | About 40T |
| Machine color | Customized |
